Acoustics Explained · Updated 2026
How Earmuffs Reduce Noise: The Sound Path, the Seal, and Why the Rating Shrinks
An earmuff isn’t just “foam in a cup.” It works because the cushion, cup shell, liner and headband hold a controlled pocket of air around the ear. This explains how earmuffs reduce noise, why the NRR/SNR on the box is a lab number, and how a small leak can undo a high rating.
Short answer: earmuff noise reduction starts by sealing the ear inside a controlled air space. The cushion blocks leaks, the cup adds mass, the foam liner absorbs sound inside the cup, and the headband holds enough force to keep the seal while the wearer moves.
The printed NRR or SNR is a lab result, not a field guarantee. Glasses, hair, sweat, worn cushions and weak headband force can all lower the protection that actually reaches the ear.
General sourcing guidance, not medical or legal advice. Confirm with your site’s noise survey and local PPE rules.

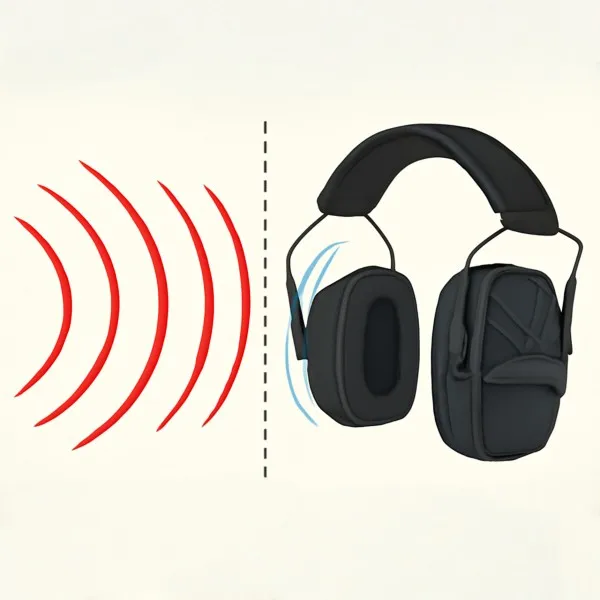

A sound path through an earmuff
Before comparing ratings, it helps to follow one burst of noise from outside the cup to the eardrum. Three things happen in order.
Outside noise hits the cup
Low-frequency energy pushes against the shell. More cup mass and stiffness make that movement harder, so less passes through.
The chamber absorbs part of it
The foam liner inside turns mid and high frequencies into tiny amounts of heat, so the cup doesn’t ring.
The cushion decides the leak
If the cushion seal opens around glasses or hair, sound bypasses the cup and reaches the ear directly — the single biggest variable.

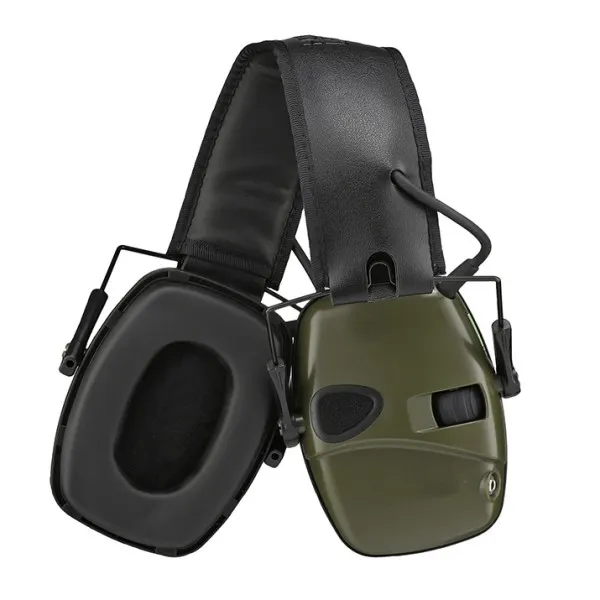

5 parts that control attenuation
Two earmuffs with the same rating can protect very differently. The difference lives in five components, not in the headline number.

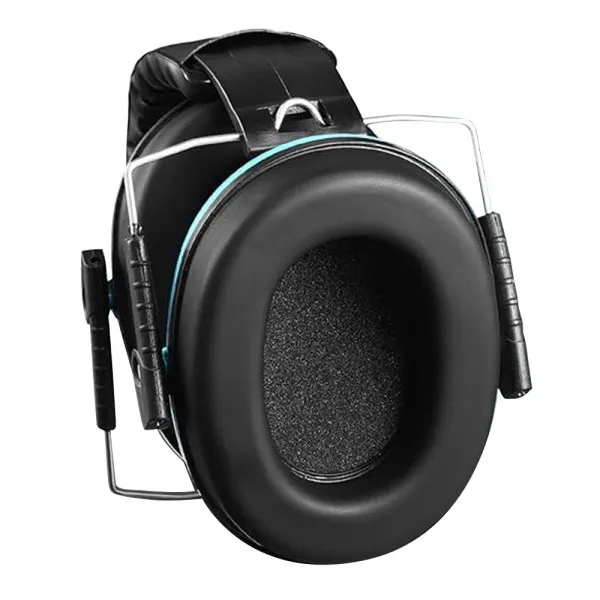

Cushion seal
The contact ring around the ear. A 1 mm gap at the temple can cost more high-frequency protection than the difference between two muff models.
Cup mass & stiffness
Heavier, stiffer shells block more low-frequency energy by physics alone — the reason high-attenuation muffs feel solid.
Internal foam liner
Open-cell foam absorbs the mid and high frequencies bouncing inside the cup, so the chamber stays quiet rather than resonant.
Shell damping
Damping material stops the cup vibrating at its own resonant frequencies, which would otherwise show up as dips in the attenuation curve.
Headband force
Clamp pressure has to stay in a narrow band — around 11–14 N — enough to hold the seal across a shift, not so much that the wearer loosens or removes the muffs.
Why NRR and SNR are not the number your ear gets
The rating on the box is measured under near-perfect fit on calibrated heads. A moving worker rarely keeps that seal, so OSHA derates the number for compliance math.
Field estimate for a US NRR:
(NRR − 7) ÷ 2 ≈ real-world dBA reduction
So an NRR 30 muff is calculated as roughly 11–12 dBA in practice. The EU’s SNR uses a different method, but the lesson is the same: build in a margin rather than buying at the edge of the number.
This is a conservative estimate for planning. Where fit-test systems are available, individual fit testing gives a better view of the protection a worker actually receives.
3 leaks that ruin a good rating
Most lost protection comes from the seal, not the muff. The cushion is the part that holds it — or loses it as it ages and hardens. These three leaks show up again and again on the floor.
Glasses & hair
Temple arms and hair lift the cushion off the skin. Use thin-arm safety glasses and sweep hair clear before relying on the rating.
Hard, aged cushions
Sweat and skin oils stiffen cushions over time. A cracked or hardened cushion stops sealing — the usual reason an old muff “stops working.”
Clamp drift
Bands left stretched over a helmet lose tension. Lower clamp force means a looser seal and several lost dB.
Passive vs electronic: what the electronics actually do
A passive muff blocks sound with the five parts above and nothing else. It’s the right default for steady industrial noise: predictable, no battery, low maintenance.

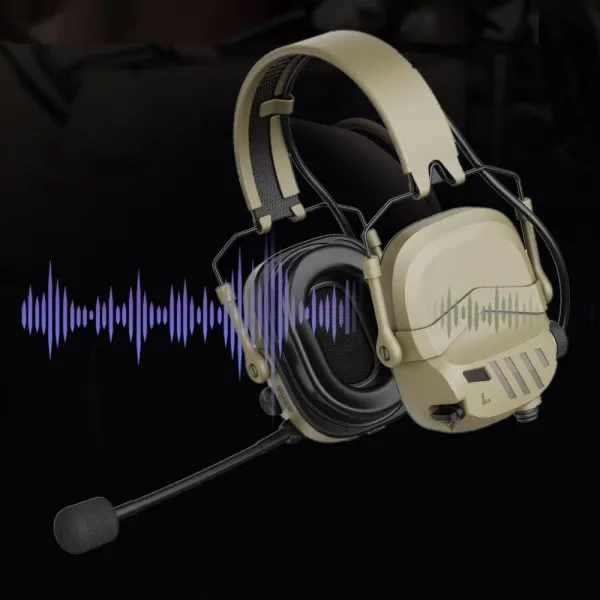

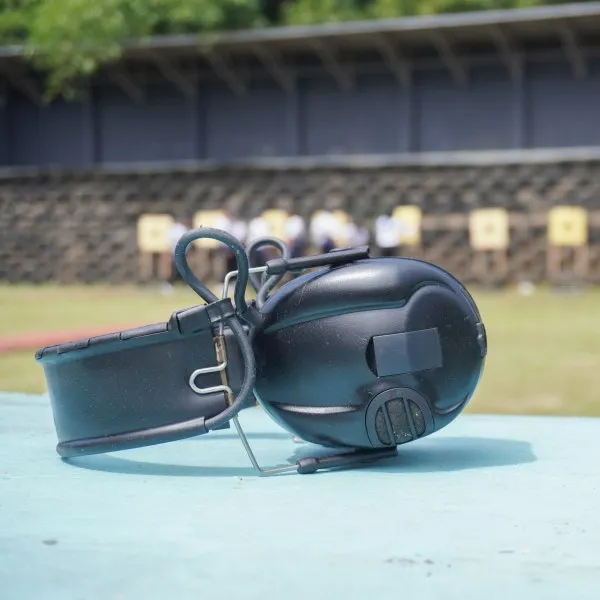

An electronic muff adds microphones and a limiter. Quiet sounds — voices, alarms, range commands — pass through; sudden loud impacts are clamped to a safe level in milliseconds. It earns its premium where you must hear speech between bursts of impulse noise, like shooting ranges or ground crews.
A 30-second check before you trust the rating
- Seat the cushion fully — no hair or glasses arm trapped under the seal.
- Press-test each cup — if pressing makes it noticeably quieter, the seal was leaking.
- Check the cushion surface — soft and intact, not cracked or hardened.
- Feel the clamp — firm but not painful; a loose band won’t hold the seal.
- Match the rating to the noise — apply the derating margin, don’t buy at the edge of the lab number.
Next reading for noise-reduction decisions
FAQ
How do earmuffs reduce noise?
They seal the ear inside a pocket of air. The cushion blocks leaks, the cup’s mass resists low-frequency sound, the foam liner absorbs mid and high frequencies inside the cup, and the headband holds the seal while the wearer moves.
Why don’t I get the full NRR in real life?
The NRR is measured under near-perfect lab fit. With glasses, hair, sweat and an 8-hour shift the seal is rarely perfect, so OSHA derates it: subtract 7 and divide by 2 as a working estimate of real-world protection.
Does a higher NRR always mean better protection?
No. A moderate-rated muff with a clean seal can beat a higher-rated one that leaks around glasses or sits loose. The seal, not the printed number, is what the ear feels.
Do I need electronic earmuffs for loud machinery?
Usually not. For steady industrial noise, passive muffs in the right band are simpler and lower-maintenance. Electronic muffs help when you must hear voices, alarms or commands between bursts of impulse noise.
Can I wear glasses with earmuffs?
Yes, but the temple arms break the cushion seal and cost a few dB at high frequencies. Use thin-arm safety glasses, route the arm above the cushion where possible, and choose a deeper, softer cushion.
How often should cushions be replaced?
Replace cushions when the surface cracks or stiffens — typically every 6–12 months of regular use. Replace the muff when the headband loses tension or the cup cracks.
